Chromecast - quick review

I recently bought a Chromecast device to test.


I already have an Android based "pen-USB" streamer connected to my TV and I was curious to see how a different system was working.

Here some impressions.

Opening


The package itself is quite fascinating.
The device is quite small, actually little bit smaller than the USB Android pen device I'm currently use.
In the box, well packed, there is the device, a power supply, a micro USB cable and an HDMI extension cord, just in case is not possible to connect the device directly to the TV.

Installing

Installing the Chromecast device is quite straightforward.
Just plug it in into a HDMI port on the TV and connect the power.
Some TV have an USB hub integrated, so in this case will there no need for the external power supply.
After a few seconds a screen will appear on the TV.

At this point the best way is to use an Android system (or iOS) and follow the instructions.
A Chromecast application is installed on the smartphone/tablet and from there is enough to follow the directions.
The required time to install Chromecast is around 5-10 minutes top.

Use


One thing must be understood immediately.
Chromecast is working with specific stream services !
In other words Chromecast can stream ONLY services that have an "app" for Chromecast.
Chromecast is NOT :
  • a generic Android system connected to the TV
  • a relay of the screen of your phone or tablet
  • a stand alone computer
Currently is possible to stream from YouTube, Netflix, Hulu, Pandora and few other services but a lot of people is working to bring more apps to Chromecast, to allow more streaming.
The quality of the streaming  is very very good actually, much more better than my USB pen-based Android streamer and also the WiFi management seems better and more reliable than the USB Android pen-based streamer.

The connection to the streaming servers is totally transparent, i.e. no need to set up accounts or passwords. So if somebody with a smartphone has a subscription to some service (like Netflix)  the Chromecast will use that to be connected.

Problems


Well, actually there are few problems, but I'm quite sure they  are depending about my particular configuration of the network.
On my network I have almost everything  with a fixed IP. I do have a DHCP server but the majority of the appliances have a fixed IP (for many reasons).
Chromecast currently is NOT supporting the fixed IP configuration.
So sometimes my DHCP server assigns an address that for some reasons is not working well, leaving the  Chromecast not working.
On "standard" domestic/consumer oriented networks, where everything is under DHCP, there are actually no problems that I'm aware off.
Another issue is the impossibility to easily stream from a local server.
It is possible to have some streaming done from the phone but there is not an easy way to do so yet.
I'm sure it will be fixed for the future.

Conclusion


Well, for the price I would say that is a "must to have" little device.
Is NOT meant to substitute a self-contained Android terminal connected to the TV, but is incredibly useful to see on TV the most popular streaming using a smartphone or tablet as "intelligent remote".
While watching a streaming the smartphone or tablet remains free to do other things or look for other programs.
And is fun too. Friends with a smartphone/tablet (Android or iOS) can connect to the Chromecast ( after installing the application on the smartphone/tablet) and show their stream selection to everybody.

Update


Just a quick note.
Chromecast can be used also with Apple products.
i.e. is not necessary to have Android smartphone or tablet in order to use Chromecast.
It is also possible to stream from any PC/Mac running Chrome (via  a plug-in for Chromecast) but honestly if you are already in front a computer, is not really important to stream on a TV (my opinion of course).

Tuesday, December 24, 2013

An anti-spam device - introduction

Notes about the feasibility of an anti-spam phone calls device.

Spammers.
Any day there is always somebody, or somewhat, that place a call to advertise the last offer for a credit card, or to sell the latest life insurance or who knows what else.

Unless to pay for some provider options, usually expensive, the main weapon against these pests, is the caller-ID.

Often is enough to see the number to identify the caller as spammer.
But sometime the number is "local", one of the many tricks spammers use to make more hard to identify a spam call.
Instead to use a 1 800 or 1 888 or other "free" or "commercial" numbers, they use local numbers, to trick the users.
Because of that, the second weapon against these pests, is the answering machine.
With that, you can "screen" the incoming call and identify a spammer or a real call.

The third weapon is our hand.
Everytime an incoming call is recognized as spam, is enough to off-hook the handset and then on-hook it, just to avoid to have the phone ringing and/or a useless and annoying message be put on the answering machine.

But since I'm lazy ... why don't build an appliance capable to do what I normally do ?

The idea is to have an appliance capable of screen the incoming calls and eventually close calls coming from known spammers.
It can not prevent the 100% of spammers to annoy with the calls, but it can limit the disturb.

How it works

The idea is quite simple.
Everytime an incoming call arrive, the system reads the caller ID and compare it with an internal data base.
If the number or name is recognized, the system will pick up (off-hook) and immediately put down (on-hook), closing the incoming call.

Or alternatively, the system can go off-hook, play a message and then on-hook.

If the number is NOT recognized, the system will wait for the user to push a button.
The last received number will be retained, so at any moment pressing the pushbutton, the number will be stored and put in the search list, if not already present.
From the user perspective, if a call is coming from a spammer, will be enough to press a button to let the system to remember the offensive number.
After that, every call coming from that number will be answered by the system.
Of course the system is not 100% accurate because unfortunately some calls doesn't have any caller-ID associated or they have a generic "private" or "unknown" indication.
Some policies are necessary, with a set of limitations, to deal with these special cases.



Specifications

The system will be capable of :
  • be connected to a PSTN phone line, POTS interface,  in parallel
  • be capable to recognize when an incoming call happens
  • be capable to read the caller-ID of the incoming line
  • to search in a database if the caller exists
  • be capable to simulate the off-hook / on-hook and eventually to send a audio message on line
  • be capable to "edit" the database contents (for example to remove a user put in black list)
  • store information about incoming calls (date, hour, lenght of the call, ecc.)
  • (optionally) have a LAN interface for management/remote administration

Architecture


The system is built around a processor and logical modules.
Every module describe the functionality, not how it is done.



Ring detector

The ring detector circuit, alerts the processor about an incoming call.

Caller ID reader

The caller ID reader, is sending to the processor the data of the incoming call in ASCIIZ format.

Off-hook/On-hook circuit

The Off-hook/On-hook circuit allows to simulate the handset operation, forcing the line off-hook and on-hook.

Input/Output

At least a display and small keyboard will allow to interact with the appliance.
Depending the processor/platform used, a remote connection (serial/LAN/wireless/ecc.) could allow a computer to extract data/edit the database


Possible systems

There are many different approaches in order to build such appliance.
The operations to do are simple enough to be executed by a small processor.
Any MCU capable to handle few I/O and having some comunication capabilities, is suitable to be used.
For example a PIC or Arduino or MSP430 can do the trick.

I have around a nice candidate for such project,  the Olimex board with the MSP430f169, that also has a SD card reader/writer, in order to store the phone numbers.

An Arduino board is probably the most efficient solution.

Another approach, is to use a ready made high level system, using maybe embedded Linux as main system.
For example the FriendlyARM board, that supply the processor/memory/user input/display functionality or a Beagleboard or similar card.

Another  board, connected using an RS232 port and I/O, can provide for the Caller ID reading capability, line detection and off-hook/on-hook functionality.

It is indeed quite an overshoot to use a board like the FriendlyArm, but assuming to have the development environment ready, it should be much more easy to build the system.
With such board become also feasible to create an interface to access the data remotely via web.

In any case a board with the POTS interface needs to be built and then interfaced to the system.
An old caller-ID kit is used for the caller ID functionality.



Mc145447 demo board

Centuries ago I bough a kit based on the Motorola MC145447 chipset.
This chip-set allows to decode the incoming caller-ID frame and extract it in ASCIIZ on a RS232 line.
The chip set also provide the ring detection circuit, in order to know if a call is incoming.

Here the schematic of the ITU kit based on the MC145447.

Note that this chip-set is long out of production, but amazingly is still available !



POTS interface

Test #1
A board capable to handle all the POTS operation can be built, starting with the caller ID circuit.
Here a schematic of a test circuit to do the first experiments :



The transformer is used mainly to give the correct load when simulating the off-hook, but in future it is possible to use it to send audio messages on line.
For example is possible to simulate the "disconnected  tone" usually sent by the telco provider, in the hope that the calling system will stop to place calls.

Or, just to vent out some stress, to play bad messages toward the spammer :-)

The first tests are done on a breadboard with recycled components.
To the ITU Caller ID kit (the green PCB on the breadboard)  I attached an old modem transformer and a reed relay.
A push-button gives the signal to activate the relay (it will be replaced by a MCU I/O).

The first tests are positive. The circuit is connected to the phone line in parallel and when the phone is ringing, pressing the push-button the call is taken and then released, simulating the off-hook/on-hook operation.
Attaching an audio source to the other side of the transformer (see the plug) is possible to hear it on the remote phone when the system is on off-hook.
In the picture is visible also the Olimex board.


Test #2

The next step is to start to integrate the POTS interface toward the micro, in this case the MSP430F169.
The breadboard is more populated, with the addition of a voltage regulator, a more easy to use power switch and the Olimex board, with some signals hooked.
Also some signals from the MC145547 chipset are brought out.

Here a new schematic.



and a picture of the new populated breadboard.



For the moment the MC145547 chip (green board) is interfaced to a normal RS232 connector.
Note the Olimex board with some signals brought out.

The Olimex board will be usually powered by the JTAG, only for tests it can be powered (as in the picture) from the 5V regulator.

This is what I did so far, a very quick prototype to test the feasibility of the idea.
The next step is to build a more reliable circuit and choose the final board.
In the example, the Olimex board with the MSP430f169 was used but probably an Arduino or something Linux based it should be better and more flexible.
As usual I have to wait to find the time and resources to do it ...

Sunday, December 22, 2013

AquaCube (c) improvements notes

This is a note about how it would be possible to improve a pet fountains with some electronic.


Just bought an Aqua Cube for Freddy, our cat.
The AquaCube is a fountain with a filter capable to hold and keep clean and areate the water for the pet.
Very nice way to allow him to drink, but there are three problems to address.

Problems

  1. remember to change the filter every 4 weeks
  2. remember to clean up the fountain every 5 to 6 weeks
  3. check the water level

Change filter

The Aqua Cube has a charcoal filter and needs to be changed every 2 to 4 weeks (depending the number of pets using the fountain).It is hard to remember in such time lapse, when is time to change the filter.It is needed a reminder.

Cleaning

At least every 6 weeks the fountain should be placed off line and washed.
Also in this case it is needed a reminder.

Check water level

The pump must always run with water and of course, the pet must have water to drink.
It is necessary to have a system capable to stop the pump if there is not enough water and notify that water need to be added to the fountain.

The idea

Of course it is relatively easy to put together a contraption capable to perform such operations and eventually something extra.

Here some basic specifications for a circuit capable to cover these needs.


Specifications

  • It must run with the power used for the pump
  • It must consume very low
  • It must have a battery backup in order to keep the count for the filter
  • It must be relatively stable (frequency)
  • It must be capable to drive a 12V rele' to power the pump
  • It must provide Visual/Acoustic notifications
  • It must have an input way to reset the conditions
  • Optional - sensing the presence of the cat to shut off the pump to avoid the noise
  • Optional - turning off the pump during some time (evaluate if there is an energy saving worth the job)
  • Optional - sending alert via email/SMS/RF/ something

Building blocks






Processor

An easy way to build such contraption would be to use a MSP430 (Launchpad) with the 32Khz crystal.
This would be a great starting base for the project.

Battery backup

The contraption must have a battery backup kept charged when the main power for the pump is present (12V).

Water level detection

The next thing is to decide how to detect the water level.

Here some constraints :
  • it must be NON toxic
  • there is no need for high precision

Since the water is drank by pets, is better to avoid any contamination. So no metal bar in the water, better a touch-less way to measure the water level.

This paper contains some suggestions, but probably the easiest way is using a pressure sensor connected to a small plastic pipe, one used in aquarium, immersed in the water.

Notification

Maybe a LEDs capable to indicate the different status and/or acoustic signal to notify when there is not enough water.
Even better a SMS or email notification, indicating the reason of the alert.
It can contains details about the notification, like "water level too low", or "change filter" or "cleaning required".

Mechanical issues


Some constraints exists for the mechanical assembly.
The electronic should be placed in a sealed box, attached to the back of the fountain.
The box must be detachable from the fountain to allow it's cleaning.
From the box starts also a clean pipe for the water level. The pipe must be detachable as well.
In other words is better to avoid hardware modifications to the fountain in order to guarantee the prescribed maintenance as described on the user guide of the AquaCube unit.

Saturday, December 21, 2013

Build fast a simple tachometer

The goal : measure the RPM of an home-made electric motor for a school experiment.

Requirements


The kind of motor built for the experiment is slow by definition, so the RPM meter (also called tachometer - http://en.wikipedia.org/wiki/Tachometer) must be capable to measure and display low revolutions per minute.
The other goal is to build the tool easily and in short time, possibly spending the less possible.

Acquiring Methods


The first problem to solve is how to acquire the rotor revolutions, i.e. how to translate a movement in an electric signal.
Usually there are two methods :
  • magnetic
  • optical

Magnetic

Since the rotor has already magnets glued on it, it is relatively easy to add a magnetic sensor capable to generate a pulse every time a magnet pass close to it.
The sensor can be a reed switch or, typically, a Hall sensor. The Hall sensor is better than the Reed switch because is not mechanical, so is not generating false signals and is faster.
If an Hall sensor is used, it must be unipolar.
There are two kind of Hall sensors, unipolar and bypolar.
The bypolar requires to "see" a change pole. i.e. a change from South pole to North pole and viceversa. Every change, triggers the change of the electric signal.
The unipolar sensor change the state of the electric signal every time a South pole is close to the sensor.
Here a graph to show the two kind of Hall sensors :


The upper part shows a bipolar Hall sensor.
When the South pole is close to the sensor, the output signal goes down. Only when the North pole is close to the sensor, the output signal goes back high.
The lower part of the graph shows a unipolar Hall sensor.
When the South pole is close to the sensor, the output goes down and it goes up as soon as the South pole is going away from the sensor.

Optical

The other common way to acquire the revolution, is optical.
Typically on the rotor is glued a reflective surface in a spot. A Infrared ray is sent toward the rotor and a circuit can detect the reflection of the infrared ray when bounced back from the reflective surface.
As alternative is possible to attach a disc with holes to the rotor and have a light beam (or infrared beam) interrupted by such disc.
A third optical alternative is to attach to the rotor a "black and white" pattern and illuminate it with a stroboscopic light.
Changing the frequency of the light until the pattern is "stable" (or visible as it would be stopped) will give the RPM.

Measurement


We have a series of pulses generated by the sensor.
Let assume we are using the magnetic acquiring method, with a unipolar Hall sensor.

Depending how many magnets we have on the rotor we can have "n" pulses for every revolution.
i.e if we have two magnets on the rotor, we'll have two pulse every revolution. 4 magnets will generate 4 pulses and so on.

The "intuitive algorithm is quite easy. We need to count the number of pulses in a minute, then divide the number for the number of magnets and the result will be our RPM.

Unfortunately this method has a drawback. We need to wait a minute before to see the result and after that, we need to wait another minute before to see changes.
So we need to reduce the acquiring time and then estimate the RPM from the minor number of readings.
For example we can count the pulses for 1 second, then divide the number of pulses by the number of magnets. The number will represent the number of revolution for second. If we multiply that number for 60, will have the number of revolution per minute (1 minute = 60 seconds).

This can work well assuming the motor rotates at a constant rate and that rate is not too slow.
For very slow rotations, it is necessary to increase the counting time, maybe to two or three seconds (and then multiply accordingly)

The problem with that is the "visualization" of the measurement. More time to count the pulses means more time between the visualization of the result.

Building


It is possible to build the tachometer in many different ways.
Of course today is more simple to use a microcontroller rather than use more "traditional" ways, like using counters, decoders and LED display.
Any microntroller family is more than suitable for this application, especially because the measurements to do are not critical.
A microcontroller is also better than "traditional logic" because it require less components and only changing the software is possible to change the type of measurement.

Mostly because is something I already have around, the idea is to use the Texas Instrument MSP430 family of microcontroller, specifically a board with already the MSP430F169 and a Philips LCD display.


This board has everything we need to build a tachometer and we can easily change the parameters, like the number of magnet on the rotor and the acquisition time.

The software will be build using the GNU Msp430 Gcc compiler.

Note ! It is possible to use the software on different boards with few modifications.
For example the MSP430 Launchpad board is more than enough for this project.
Only two reasons did let me decide for the Olimex board :
  1. I already had this board around picking up dust
  2. This board has already a joystick and LCD display on it

Tools


In order to develop the RPM meter (or tachometer) some tools are necessary.
The software will be build under a Linux machine, using Code::Blocks as editor/IDE.
The compiler used is the open source version of the GNU Gcc for the MSP430 .
The debug system is based on the msp430-gdbserver.
An oscilloscope will be used to check the input signal from the Hall sensor.
The PC used to develop the code must have a traditional parallel port since the only GDB tool is parallel.
For the schematics, the FidoCad and Eagle programs will be used.
FidoCad allows to draw very simple schematics, Eagle is more sophisticate and can be used to produce a PCB (not necessary for this particular project though)

Hardware


As introduced before, the main hardware is the Olimex board based on the MSP430F169.
What is needed is the Hall sensor. I choose a Honeywell SS400 series Unipolar Hall sensor (SS441A ).

The sensor will be connected to an I/O pins of the board,  one capable to read the output signal from the sensor.
Since the board has plenty of available I/O Pins is not a problem.

Specifically will be used the Pin1.1 to read the signal from the Hall Sensor.


The P1.1 is capable to generate interrupts and it can be also connected to an internal timer in case a different measure approach is needed.
The sensor needs to be powered with a Vcc starting from 3.8 V. The Olimex board is operating at 3.3.V so an external regulator is needed and a 5V one is used. Because the MSP430F169 I/O pin are NOT 5V tolerant a resistor limiting the current is needed to avoid damage to the microcontroller.
The capacitors are the standard ones for the 78L05 regulators.

Here is possible to find the schematic of the Olimex board.

Software

First draft


The software is a first simple draft to prove the concept and verify the hardware.
It is based on the original demo code coming with the board, modified for the specific needs.
The Hall sensor signal will be connected to an interrupt capable I/O in order to don't miss any "firing" of the signal.
One or more timers will be used for the time counting. The visualization will be placed in the main loop.

The algorithm is quite simple and based on two interrupts.
One interrupt is related to the I/O pin connected to the Hall sensor. Normally the signal is pulled up, so the interrupt is set to fire on the descending slope of the signal.
The interrupt function increment a counter every time the signal goes down.

The other interrupt is a timer.
A generic timer "fires" every "n" seconds (default is 1).
When the timer fires, the the counter is copied in a variable and the counter is set to zero.
A flag is set to one indicating the need to display the content.
In the main loop, the visualization loop check the variable updated by the visualization timer to show the result.

I/O Settings


Some I/O are "forced" by the nature of the board.
Here the main ones used other than the ones pre-wired on the board :


P1.1 Hall sensor input
Pulled up, the pin goes to zero when a South Pole magnetic field is close to the sensor
P2.1 Status LED - toggle at every Hal sensor signal
The LED is toggled at every sensor magnetic event
P2.2 Status clock
The pin is toggled at every timer firing. If the timer is set for 1 second, the signal will have 2 second period.
2 seconds timer will generate a 4 seconds period on the pin and so on.
P2.3 Debug pin
Generic debug pin


Clock settings


The Olimex MSP430F169 LCD board has two crystal sources.
A 32Khz crystal and a 8 Mhz crystal.
For this application one of them should be OK since the low time involved.
The minimum period needed is about 1 second, so also the slower but precise 32Khz source should be OK as clock.

In order to minimize the timer interrupts generated, the 32 Khz crystal is used in order to generate a 1 second timer used for the measurement, the rest of the board continue to use the DCO as main source of the clock.

To set the 32Khz crystal :
DOCTL = 0x60
modulation off, DCOx and RSELx ~800kHz
BCSCTL1 = 0xB7
XT2OFF = 1 - XTS = 0 - DIVAx = 3 - RSELx = 7
BCSCTL2 = 0x00
SELMx = 0 - DIVMx = 0 - SELS = 0 - DIVSx = 0 = DCOR = 0
BCSCTL3 = 0x0C
XT2Sx = 0 - LFXT1Sx = 0 - XCAPx = 12.5pF - XT2Of = 0 - LFXT1OF = 0

With this setting the ACLK is of 4096 Hz, the MCLCK/SMCLK of ~800kHz
Note : using the 32Khz for the main clock (MCLK) the display is not working properly.

Timer setting


A generic timer is handling some sub-timers used to count the Hall sensor pulse and display the value.
The timer_A 0 will be used in the up mode.
The clock source for the timer will be ACLK, i.e. 4096 Hz.
The Timer_A will be set with a /8 so that the value 512 placed in the TACCR0 will generate an interrupt every 1 second.

TACTL = TASSEL_1 + ID_3 + MC_1; /* Uses ACLK, divide by 8, count in up mode */
TACCTL0 = CCIE; /* Use TACCR0 to generate interrupt */
TACCR0 = TMRVALUE; /* 1s */

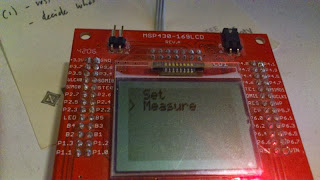

Menu

When the code starts, a menu appears.
Two choices are available :

  • Set
  • Measure

The Set allows to set up some parameters, like the number of seconds for the counter/display value or the number of magnets
The Measure starts the measurement.



Update


After few small modifications and settings, the tachometer was installed on the home-made experiment motor.
The sensor is placed on the top of the rotor using a wooden pole, so to be perfectly aligned with the rotor's magnets.





If somebody is interested to have the source code just contact me

Saturday, December 7, 2013

How to unbrick a Sheevaplug



Sometime, doing development on a board, is possible to end up with the board bricked.
Bricked means that the board is TOTALLY dead, no prompts, no possibility to issue commands, nothing happens.

It happened to me today with a Sheevaplug.
Here how I unbricked my Sheevaplug.

As usual the first thing to do in these cases is to seat down, breath slowly and repeat : DON'T PANIC :)

Research


The first thing to do in these cases is to search for procedures/tools specific for the Sheevaplug.
Of course the main source of information almost always is broken. For example the main website for the Sheevaplug is the Plug website .
Until few months ago there was a nice Wiki containing all the information necessary to unbrick a Sheevaplug, now the wiki is missing.
A lot of posts are pointing to Wiki articles that are not existing anymore.

Unbrick it


There are many procedures that "in theory" can be used to unbrick a Sheevaplug.

However the one described here is the one that is working, found on this forum .

On the host machine connected to the Sheevaplug via USB, is necessary to have installed a package called openocd, telnet and screen.
My host machine is based on Xubuntu 12.04 so :

$ sudo apt-get install telnet screen openocd

At this point, be sure to have the Sheevaplug connected to the host machine via the USB cable (it simulating a serial port) and power it up.
Note ! In my case, the host machine is a virtual machine under VirtualBox, so it is necessary to go on Devices/USB Devices and enable the Sheevaplug serial port (it could be marked as FTDI Sheevaplug JTAGkey).

Then unless to work always with sudo, set the USB serial port to the user (in my case steve).
Usually the connection is set up as ttyUSB0, but better to check :

$ sudo chown steve /dev/ttyUSB0

then

$ screen /dev/ttyUSB0 115200

It is normal that nothing happens at this point.

Now we have to open a second terminal and run this command :

$ sudo openocd -f /usr/share/openocd/scripts/board/sheevaplug.cfg -s /usr/share/openocd/scripts
If everything is OK we should see something like that :

$ sudo openocd -f /usr/share/openocd/scripts/board/sheevaplug.cfg -s /usr/share/openocd/scripts
[sudo] password for steve:
Open On-Chip Debugger 0.5.0 (2011-12-03-08:57)
Licensed under GNU GPL v2
For bug reports, read
http://openocd.berlios.de/doc/doxygen/bugs.html
Info : only one transport option; autoselect 'jtag'
2000 kHz
trst_and_srst separate srst_gates_jtag trst_push_pull srst_open_drain
adapter_nsrst_delay: 200
jtag_ntrst_delay: 200
dcc downloads are enabled
Warn : use 'feroceon.cpu' as target identifier, not '0'
sheevaplug_load_uboot
Info : clock speed 2000 kHz
Info : JTAG tap: feroceon.cpu tap/device found: 0x20a023d3 (mfg: 0x1e9, part: 0x0a02, ver: 0x2)
Info : Embedded ICE version 0
Info : feroceon.cpu: hardware has 1 breakpoint/watchpoint unit


At this point nothing should happens.

Now we need to open another terminal and create a temporary directory where to store a bootloader :

$ mkdir temp
$ cd temp
$ wget http://www.downloadsnewit.co.uk/u-boot/recovery/sheevaplug/u-boot.elf

In the directory temp now we have a recovery version of the bootloader for the Sheevaplug.

From there we need to open a telnet session with openocd :

$ telnet localhost 4444

We should see something like that :

$ telnet localhost 4444
Trying 127.0.0.1...
Connected to localhost.
Escape character is '^]'.
Open On-Chip Debugger
>


At this point we can issue the command :

> reset;sheevaplug_init;load_image u-boot.elf;resume 0x00600000

This should load the bootloader and start it.
If everything is OK, on the terminal connected to the Sheevaplug USB cable we should see :


__ __ _ _
| \/ | __ _ _ ____ _____| | |
| |\/| |/ _` | '__\ \ / / _ \ | |
| | | | (_| | | \ V / __/ | |
|_| |_|\__,_|_| \_/ \___|_|_|
_ _ ____ _
| | | | | __ ) ___ ___ | |_
| | | |___| _ \ / _ \ / _ \| __|
| |_| |___| |_) | (_) | (_) | |_
\___/ |____/ \___/ \___/ \__|
** MARVELL BOARD: SHEEVA PLUG LE

U-Boot 1.1.4 (Apr 9 2009 - 12:23:12) Marvell version: 3.4.16
U-Boot code: 00600000 -> 0067FFF0 BSS: -> 006CEE60
Soc: MV88F6281 Rev 3 (DDR2)
CPU running @ 1200Mhz L2 running @ 400Mhz
SysClock = 400Mhz , TClock = 200Mhz


DRAM CAS Latency = 5 tRP = 5 tRAS = 18 tRCD=6
DRAM CS[0] base 0x00000000 size 256MB
DRAM CS[1] base 0x10000000 size 256MB
DRAM Total size 512MB 16bit width
Flash: 0 kB
Addresses 8M - 0M are saved for the U-Boot usage.
Mem malloc Initialization (8M - 7M): Done
NAND:512 MB
*** Warning - bad CRC or NAND, using default environment

CPU : Marvell Feroceon (Rev 1)

Streaming disabled
Write allocate disabled
USB 0: host mode
PEX 0: interface detected no Link.
Net: egiga0 [PRIME], egiga1
Hit any key to stop autoboot: 0


Better to hit any key to stop the autoboot.
A Marvel prompt will appear.

At this point a bootload is running on the Sheevaplug but it is necessary to write it in the NAND, otherwise the next time the unit is powering up, the unit will remain bricked !

There are many ways to save a bootloader in the NAND.
The first step is to retrieve a bootloader.
For this test I used a bootloader suggested from a blog describing how to install a Debian distribution on the Sheevaplug.
Here the link : http://people.debian.org/~tbm/u-boot/2011.12-3/sheevaplug/u-boot.kwb

I used  a TFTP server to load the bootloader on the Sheevaplug.
In the TFTP server (usually a directory called tftpboot) put the bootloader you want to be installed, it is usually named u-boot.kwb.

Then on the terminal connected to the serial port, at the prompt Marvel :

Marvell>> setenv serverip 192.168.2.61
Marvell>> setenv ipaddr 192.168.2.33


These two lines assign the IP address for the server hosting the TFTP and the IP address of the board.
A bootloader called u-boot.kwb is loaded in the tftpboot directory of the server.

Marvell>> tftpboot 0x0800000 u-boot.kwb
Using egiga0 device
TFTP from server 192.168.2.61; our IP address is 192.168.2.33
Filename 'u-boot.kwb'.
Load address: 0x800000
Loading: #################################################################
########
done
Bytes transferred = 372544 (5af40 hex)
Marvell>> nand erase 0x0 0x60000


At this point we have the bootloader code loaded in the Sheevaplug RAM.
We need to clean up the NAND and load the bootloader in it.

NAND erase: device 0 offset 0x0, size 0x60000
Erasing at 0x40000 -- 100% complete.
OK

Marvell>> nand write 0x0800000 0x0 0x60000
NAND write: device 0 offset 0x0, size 0x60000
393216 bytes written: OK
Marvell>>


If everything is OK, the new bootloader is loaded in the NAND.
Resetting the Sheevaplug we obtain :

U-Boot 2011.12 (Mar 11 2012 - 18:59:46)
Marvell-Sheevaplug - eSATA - SD/MMC

SoC: Kirkwood 88F6281_A1
DRAM: 512 MiB
WARNING: Caches not enabled
NAND: 512 MiB
NAND read from offset 60000 failed -74
*** Warning - readenv() failed, using default environment

In: serial
Out: serial
Err: serial
Net: egiga0

88E1116 Initialized on egiga0
Hit any key to stop autoboot: 0


We are almost done !
The last step is to assign the correct MAC address to the Sheevaplug.
To do so, first write down the MAC address of the board. The MAC address assigned to the board is present on a label on the bottom of the Sheevaplug.

Then, at the Marvell prompt :

Marvell>> setenv macaddr xx.xx.xx.xx.xx.xx  # where xx are the digits of the MAC address
Marvell>> saveenv   # save the new address


The Sheevaplug is unbricked and ready for a fresh new installation.

Useful links


Here some links that helped me.

Saturday, September 14, 2013

Determine a magnet polarity

Knowing the polarity of a magnet is important in order to use the same polarity when more than one magnet are used in a motor for example.
Here some notes about how to determine the polarity of a magnet.

There are many different ways to determine the polarity of a magnet :

  • using a compass or equivalent
  • suspending the magnet freely and looking at the final direction (it is assumed to know where the Earth North pole is)
  • comparing it with a known magnet
The most important thing is to know something about the standard.
In USA the "North" pole of a magnet, defined by the National Bureau of Standards (NBS) convention,is based on the following:

"The North Pole of a magnet is that pole which is attracted to the geographic North Pole.
Therefore, the North Pole of a magnet will repel the north seeking pole of a magnetic compass."

The magnets


For the experiment we'll be using round shape magnets, easier to be glued to a rotor.
Something like the ones in the picture.


On a disc, the poles are present on the surface.


Marking the poles


In order to figure out what pole is on a surface, the fastest method is to use a compass or an equivalent electronic one.
Pointing the disc surface toward the compass, will force one of the two side of the row toward the disc.
The North pole of the magnet will attract the South pole of the compass.
The South pole of the magnet will attract the North pole of the compass.

Since all the smartphones have a magnetic sensor (Hall effect sensor) it is relatively easy to build an application capable to identify a pole.
On the market there are already many different applications that do so.
For the purpose to identify what is the pole of a magnet we choose the Magnetic Pole Detector.
With this application is easy to identify the pole of a magnet.

It is enough to place the magnet with one surface toward the smartphone and push a button to see what is the pole.

The pictures show a measurement.
The face of the magnet oriented toward the phone, is the South pole of the magnet.
The opposite side is the North pole.

There are of course also many specific tools for this purpose if you down own or want to use a smartphone.

Here few examples :



Saturday, September 7, 2013

Alphaline mod. 18281

Since I have a nice bricked Alphaline MP4 player, and nobody willing or able to service it,  why not take it apart and see what is inside ?

Open the player

The shell of the player is in plastic. No screws, only small plastic hooks.
With a very small screwdriver, start to gently force close to the bottom angles of the player, where the USB connector and phone connectors are.
Then very gently start to work all around the border of the player.
A certain point it will be possible to user the fingers to gently separate the shells.


The inside

After the shells are separated, the PCB and the battery appears (the gray "thingy" on the right).
3 big chipsets are visible, plus the microphone and the pinhole camera.
Also the micro SD card reader, the USB connector and the headphone jack are visible,

The three chipset are so marked :
  • ATJ2259C - ZC55LBB B7A
    The microcontroller - So far I was unable to retrieve datasheet or even basic information about this controller.
    It is a Chinese processor and in the typical Chinese way, no information are released.
    Pity. We should really stop to buy stuff produced in China.
  • Infineon HYB39S25616odt
    HYB39S256160DT-7 - 256-MBit Synchronous DRAM
  • PF369 - AR - 1134
    Probably LCD/touchscreen manager but like the processor I was unable to find information.

Wednesday, September 4, 2013

Smartphone audio cable adapter


Unfortunately doesn't seems in the smartphone and tablet world, to exist a single standard for the audio connectors (see article about the smartphone audio jack).

On the market do exists cable converter of any kind, however they are often unnecessarily costly.
If you need an audio jack adapter between the main two standard in the smartphone world, OMTP and CTIA, here what I did.

Shopping list


Quite easy ... we need three things :
  • a 4 wire cable
  • a TRRS male jack
  • a TRRS female jack
I solved buying the needed material from Sparkfun.
I ordered a TRRS male jack with 18" of cable (CAB-11580) for $1.95 and a TRRS jack breakout (BOB-11570) for $3.95.
The TRRS jack breakout

It is possible maybe to find just a TRRS female for less, but the breakout is more flexible since it can be used also to provide a test platform (hook up oscilloscope, ecc.).
For about 9$ (the material plus shipment) is possible to have all the necessary to build the adapter.
A ready made cable converter can be found usually around 11$ plus shipment, but  the advantage to build it is that can be modified for other type of connections.

Schematic

OMAP<--->CTIA


Well, is really quite straightforward.
It is simply matter to connect the Tip and first Ring directly, and then swap  the other two.
The TRRS jack with the cable has this pinout :

  • Tip - red wire
  • Ring - white wire
  • Ring - green wire
  • Sleeve - black wire
On the PCB are marked the positions, so it is straightforward to connect the wires.





Saturday, August 31, 2013

Smartphone/tablets audio connectors

One of the few things really annoying is when manufactures decide to don't follow a single standard for the connectors of their products.
I have around some smartphones and there are differences on the audio (3.5 mm) connector.
These differences creates problems with some accessories.

For example I bought a very nice desktop phone stand from Aptiva, but I soon discovered that it is incompatible with my Sony Ericsson Xperia.
The same for a Hype Retro Walkie Talkie handset I wanted to use to enhance the Zello experience.
On the Sony is not working at all, on the Samsung tablet works in part (see the note on the bottom of this article).

So there are differences about the connection of the 3.5 mm audio port on these devices.
This article is trying to document the pinout of different phones/tablet and giving information about this problem and how to solve it.

Introduction


The typical 3.5 mm jack is divided in different areas :
  • Sleeve
    The part of the connector close to the handler, the cover.
  • Ring
    The part of the connector separated by a insulator ring
  • Tip
    The far part of the connector, the "point"
There are many different types of jack.
In the figure below, there is an explanation of the main parts of such connector.
This type of  jack is called TRRS  (Tip/Ring/Ring/Sleeve) and it become the "standard" for smartphones.

The most known type of jack is the one used to connect the standard stereo headset.
This type of jack is called TRS, from the initials of the connections :
Tip - Ring - Sleeve


CTIA Audio jack


CTIA defined an audio connector.
It is a TRRS  :
  • (sleeve) Microphone input
  • (ring) Ground (common)
  • (ring) Right Audio out
  • (tip) Left Audio out

iPhone 4S



Many audio accessories are labeled as iPhone compatible.
This means that the majority of the audio accessories found on the market follow the Apple standard for the 3.5 mm audio connector.
The iPhone/iPad audio jack follows the specifications defined by CTIA.



So every accessories that declare to be iPhone compatible has the pinout shown above.

OMTP audio jack


Android, as general rule, seems follow a standard defined by a group called OMTP.
However different manufacturers choose to follow the CTIA, others didn't.
The main difference between the CTIA and  OMTP is switching the place from Ground and the Mic.
So each Android smartPhone or Android  tablet can have different audio jack pinouts. That's very very bad.
This is the OMTP connector :


So let see different brands what offers.
Keep in mind that usually models of the same brand uses the same pinout, but it could be different !
So never assume.

Sony Ericsson Xperia LT18a


OMTP standard

In order to use Apple iPhone standard accessories, is necessary to use a converter.
It is possible to search for CTIA<--->OMTP conversion cable or it is relatively easy to build one.

Samsung Galaxy Tablet 7" GT-3113


CTIA standard

Samsung SPH-M910


CTIA standard


FriendlyArm Tiny210 SDK


This OEM board can run Android 4.0.3.
It has a TRS jack for the audio output and a TS jack for the audio input.
